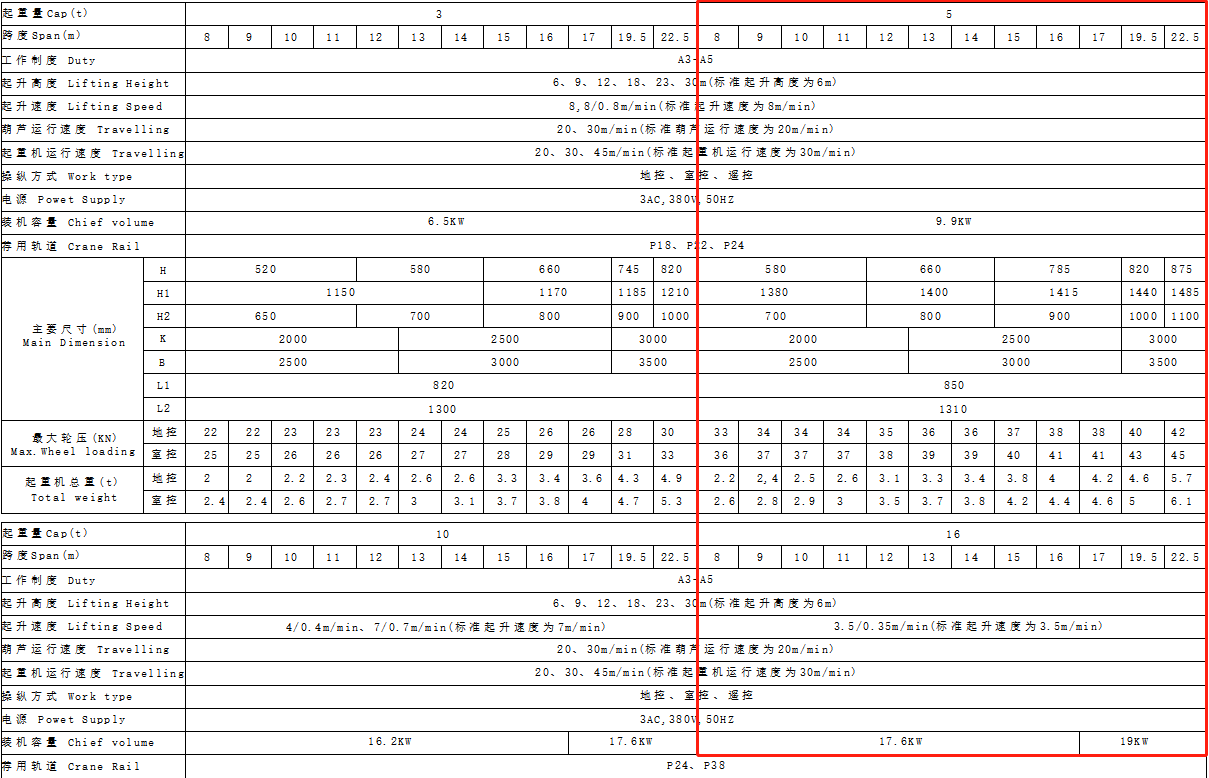

5t单梁起重机有以下主要的技术参数：

单梁起重机产品简介：

LD(A)型电动单梁起重机是按标准JB/T1306-1994设计制造的，与CDI、MDI等形式的电动葫芦配套使用，成为一种有轨运行的轻小型起重机，其适用起重量为1-16t，适用跨度为7.5-22.5米，工作环境温度在-25—+40℃范围内。本产品为一般用途起重机，多用于机械制造、装配、仓库等使用频度低或额定起重量起吊次数少的场所。优点：订货周期短、经济实惠；缺点：有效起升高度相对较低，使用中晃动相对较大，工作级别低，不适用繁重车间。本起重机设有地面、操纵室、遥控三种操纵形式，操纵室又设有端面及侧面开门两种形式，以供用户选择使用。

LDA model single beam motor crane is improved and designed on the basis of LD model It is characterized by more reasonable structure and higher strength steel as awhole Used together

with CD model MD model electric hoist as a complete set it is light duty crane with a capacity of 1 to 10tons The span is 7.5-22.5m Working grade is A3-A5 Working temperature is-25℃-4025℃

  This product is widely used in plants warehouses material stocks to lift goods It is prohibited to use the equipment in the combustible explosive or corrosive environment

  This product has two operational methods ground or operational room which has open model and closed model and can be installed on left or right side according to the practical
